BeachTech 2500

Innovative beach cleaner

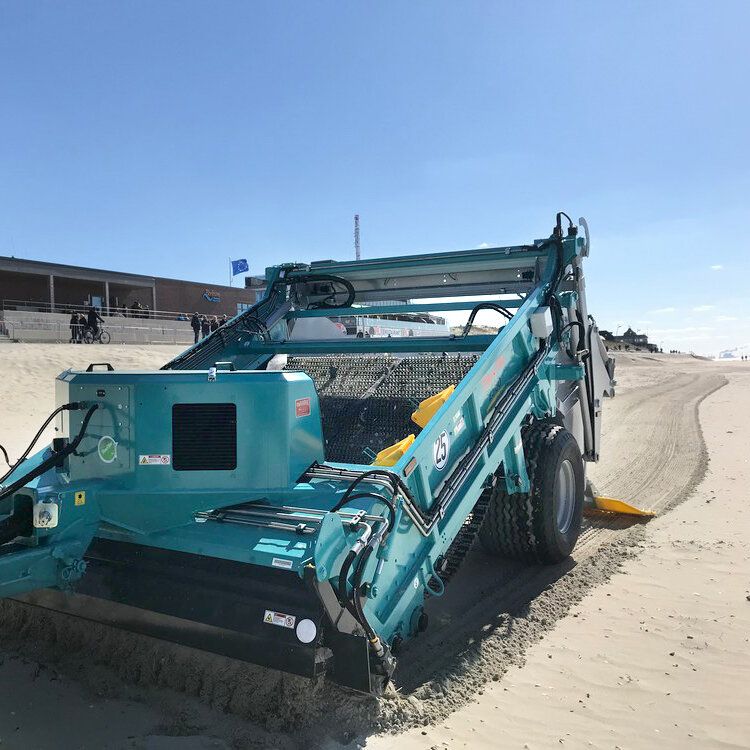

The tractor towed beach cleaner BeachTech 2500 on the beach.
Highlights
Towed beach cleaner BeachTech 2500 front view in showroom

PickUp with spring tines

The PickUp blade with spring tines assists in picking up the sand into the beach cleaner. The spring tines can be aligned differently via a hydraulic cylinder. The operator can thus switch continuously between raking, screening and mixing techniques and adapt optimally to the prevailing conditions.

Composite screening belt

The new, patented composite screening belt offers users numerous advantages: With additional drive belts and cross bars, it has a higher mileage and service life. Due to its innovative design, it is not subject to elongation and therefore does not need to be shortened.

Towed Beach Cleaner BeachTech 2500 Close Up High Flotation Tire
Optimum traction
High-Flotation tires

High Flotation tires for high payloads at low air pressure. The special tires provide the beach cleaner with the best possible traction on soft surfaces.

BeachTech 2500 towed beach cleaner rear view in showroom
Collection hopper

The large collection hopper has a loading volume of 2.8 m³ , providing the capacity to cleans large areas easily without numerous dump stops. Thanks to the dump height of 2,750 mm, the collected material can be unloaded directly into a container or truck bed. Beach cleaning is thus particularly efficient.

Maintenance-free bearings

The bearings of the beach cleaner are particularly well protected from sand penetration by the end plate and seal, so regular re-greasing is not required.

BeachTech 2500 towed beach cleaner close-up finisher
Sauberkeit, die man sieht
Finisher

Der Finisher glättet die Sandoberfläche und komprimiert sie leicht. Dabei hinterlässt sie das typische Rillenmuster - ein ebenmäßiges, und einladendes Strandbild.

LED lights

The BeachTech 2500 has LED lights as standard, so the beach cleaner is well lit at night and visible to other vehicles. The LED lights also feature rough service and long life.

Towed Beach Cleaner BeachTech 2500 with tractor Side view on the beach

Slip-on pump

The beach cleaner is connected to the tractor via a slip-on pump. The hoses allow the vehicle to drive with a tight turning radius. The beach cleaner can be connected to any conventional tractor.

Towed beach cleaner BeachTech 2500 close-up remote control

Remote control

Simplified handling: only one double-acting circuit of the tractor's auxiliary hydraulics (in standard operation). Easy control of all operations via remote control from the cab.

Gezogener Strandreiniger BeachTech 2500 technische Zeichnung mit Bemaßung Seitenansicht und Hinteransicht

Technical Data

Dimensions
Overall length6,060 mm
Width2,500 mm
Height2,250 mm
Working Width2,500 mm
Weight
Net weight2,790 kg
Gross weight limit4,000 kg
Performance
Max. area coverage30,000 m²/h
Working depth up to30 cm
Power Take-Off Shaft Speed540 rpm
Dump height2,750 mm
Hopper capacity2.8 m³
Dimensions
Overall length19 ft 11 in
Width8 ft 2 in
Height7 ft 5 in
Working Width8 ft 2 in
Weight
Net weight6,151 lbs
Gross weight limit8,818 lbs
Performance
Max. area coverage7,4 acres/h
Working depth up to12 in
Power Take-Off Shaft Speed540 rpm
Dump height9 ft
Hopper capacity3.7 cu yd

beach cleaning with BeachTech

BeachTech beach cleaners provide the best cleaning results while maintaining high area performance and minimal environmental impact.

Clean beaches

The BeachTech 2500 uses Rotary Screen Technology. Sand is picked up by the pickup blade equipped with spring tines and transported by the rotating screen belt. Here, even the smallest particles of dirt, such as bottle caps, broken glass, or cigarette butts, are screened out. Larger items, such as stones or plastic waste, are also reliably collected. The cleaned sand falls back to the ground. The different settings of the spring tines allow the operator to switch between screening, raking and mixing technology and thus react quickly to special conditions, such as wet, heavy sand.

Towed Beach Cleaner BeachTech 3000 rear view

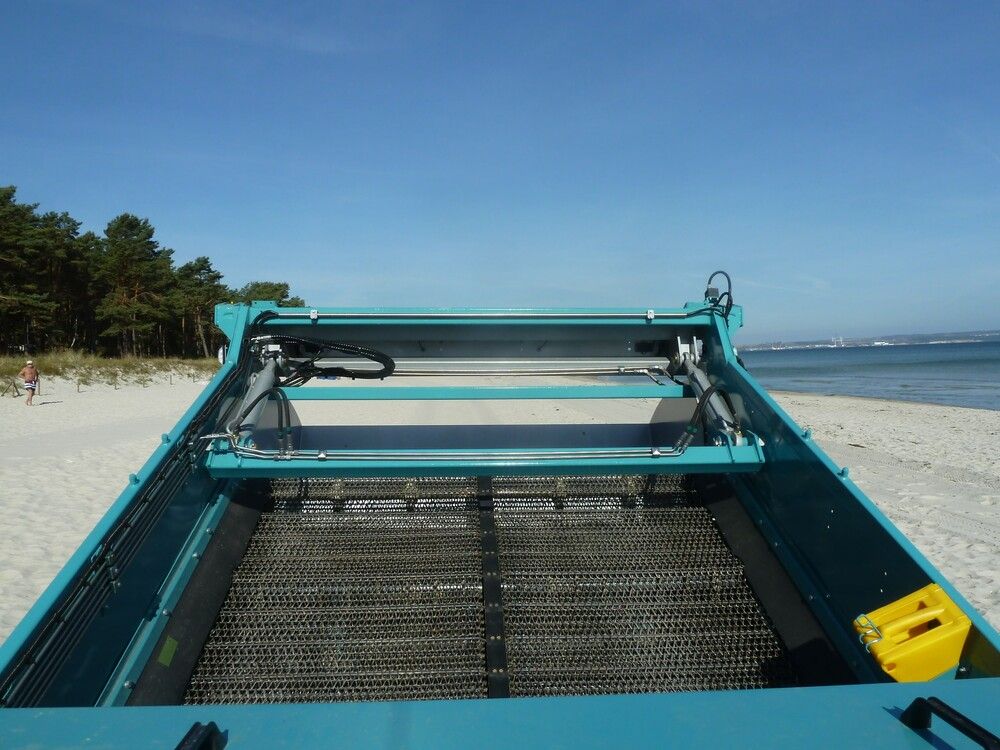

Patented composite screening belt

The innovative composite screening belt is particularly easy to maintain. Thanks to additional drive belts and cross bars, it is not subject to elongation and therefore no longer needs to be shortened. Service or even downtimes during the season are thus almost completely eliminated. At the same time, the composite belt has a higher mileage and longer service life.

Towed beach cleaner BeachTech 3000 close-up composite screen belt
Equipment
Spring tines

Low maintenance, individually replaceable

Screening belts

Various mesh sizes

Eccentric shafts

Various shapes, diameters and profiles

Maintenance-free bearings

No more need for re-greasing

Reversing valve

Direction change of the screening belt possible

Camera system

for better view of the pick-up shaft

Feeler wheels

for constant depth control

PTO drive

for quick coupling and uncoupling

Hydraulic brake
Pick-up speed control valve
Sprayer with 400l water tank

for dust reduction in dry sand conditions
