Additional collection hopper

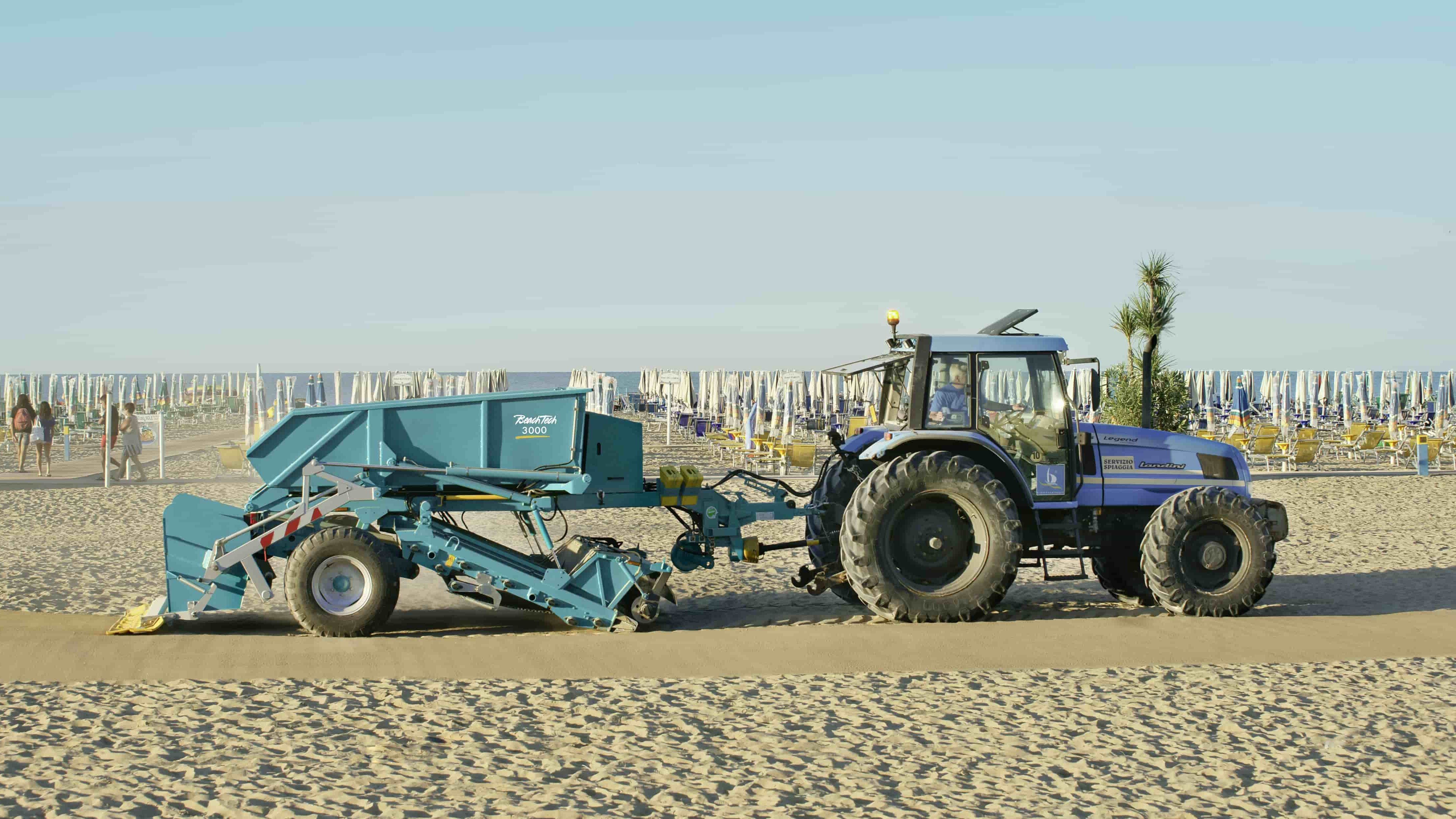

The BeachTech 3000 is a beach cleaner and haul vehicle in one. The contents of the collection hopper can be emptied directly into the main dump body. Instead of driving to the container or dumping point, only a short stop is required. This results in significantly shorter dumping times and a higher output per hour. The dump body is made of aluminum and is therefore particularly light.
The PickUp blade with spring tines assists in picking up the sand into the beach cleaner. The spring tines can be aligned differently via a hydraulic cylinder. The operator can thus switch continuously between raking, screening and mixing techniques and adapt optimally to the prevailing conditions.
With a working width of 2.50 m and the particularly high loading volume, the BeachTech 3000 achieves area outputs of up to 30,000 m² per hour. (7.4 acres/h).
The BeachTech 3000 has two screen cassettes through which the sand to be cleaned is screened out. The material to be picked up is conveyed to the first screening belt during travel, where the sand is screened out by vibration. The waste material is then conveyed by the second belt into the collection hopper. The result: maximum screening capacity and effective sand cleaning!
The finisher smoothes the sand surface and compresses it slightly. In doing so, it leaves behind the grooved pattern - the signature of a cleaned and inviting beach.
High Flotation tires for high payloads at low air pressure. The special tires provide the beach cleaner with the best possible traction on soft surfaces.
To operate the BeachTech 3000, a tractor with minimum 100 hp (depending on sand conditions) and a PTO speed of 1,000 rpm is required.
Operating control terminal
All vehicle functions can be controlled via the operating terminal in the tractor cab, e.g. lifting and lowering the collection hopper or setting the working depth of the pickup blade. This enables comfortable 1-person operation.
|Overall length||7,000 mm|
|Working width||2,500 mm|
|Net weight||3,200 kg|
|Gross weight limit||6,200 kg|
|Max. area coverage||30,000 m²|
|Working Depth up to||30 cm|
|Power Take-Off Shaft Speed||1,000 rpm|
|Dump height||1,550 mm|
|Capacity collecting hopper||0.7 m³|
|Capacity dump body||4.0 m³|
|Overall length||23 ft 0 in|
|Width||9 ft 2 in|
|Height||7 ft 5 in|
|Working width||8 ft 5 in|
|Net weight||7,055 lbs|
|Gross weight limit||13,669 lbs|
|Max. area coverage||7.4 acres/hr|
|Working depth up to||12 in|
|Power Take-Off Shaft Speed||1,000 rpm|
|Dump height||5 ft|
|Capacity collecting hopper||0.92 cu yd|
|Capacity dump body||5.23 cu yd|
Effective beach Cleaning
Why you should rely on BeachTech for professional beach cleaning!
The BeachTech 3000 works with Rotary Screen Technology. The sand is picked up by the pickup and transported to the rotating screen belt. Here, even the smallest litter particles, such as bottle caps, shards or cigarette butts, are screened out and forwarded to the second screen belt. Larger items, such as stones or plastic waste, are also reliably collected. The different settings of the spring tines allow the operator to switch between screening, raking, and mixing technology and thus react quickly to special conditions, such as wet, heavy sand.
The BeachTech 3000 is a beach cleaner and haul vehicle in one. With the main loading body and the large collection container, it has a loading volume of 4.7 m³ (6.15 cu.yd.). The collection hopper can be easily emptied into the dump body - instead of driving to the container or unloading point, all that is required is a short stop. With its unbeaten loaded capacity, the BeachTech 3000 is therefore particularly well suited for use on large, extensive sand areas.
Low maintenance, individually replaceable
Various mesh sizes
Various shapes, diameters and profiles
No more need for re-greasing
Direction change of the screen belt possible
- Camera system
for better view of the pick-up shaft
- Feeler wheels
for constant depth control
- Wind screens
on the side of the screening belts
- Spraying device with 400l (106 gal) water tank
for dust reduction in dry sand conditions
