BeachTech 3000

The jumbo beach cleaner

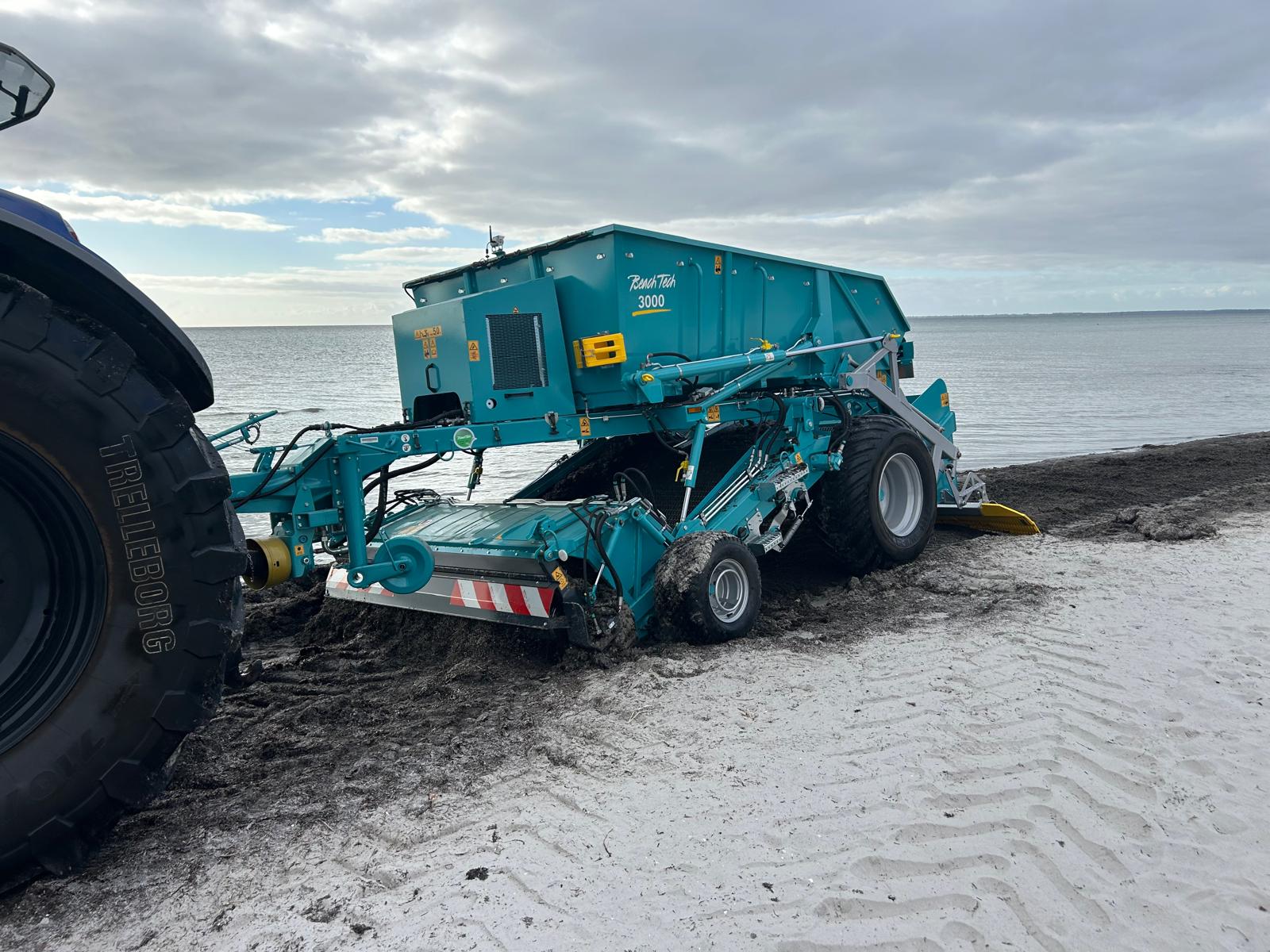

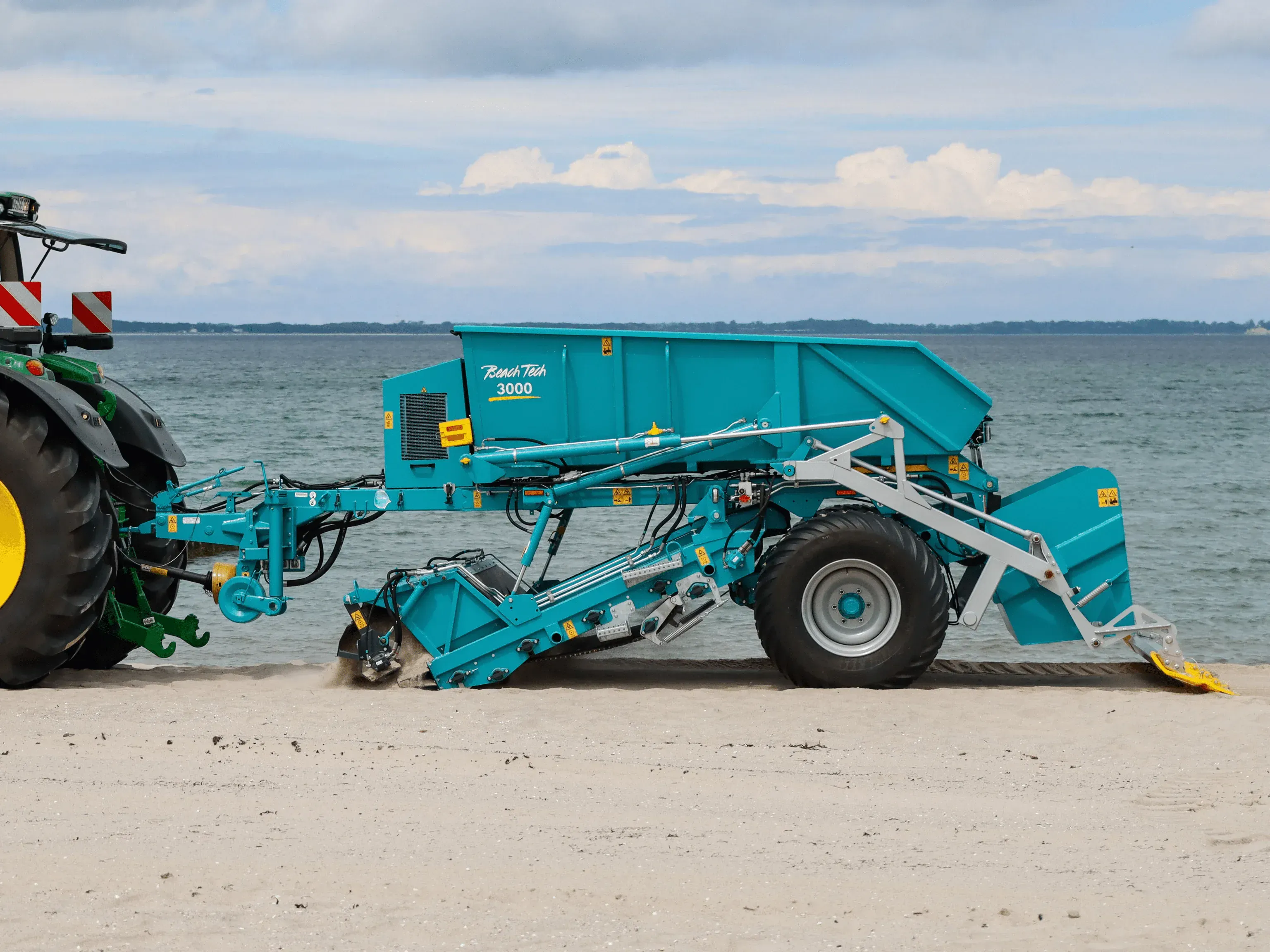

The pulled beach cleaner BeachTech 3000 on the beach

Highlights

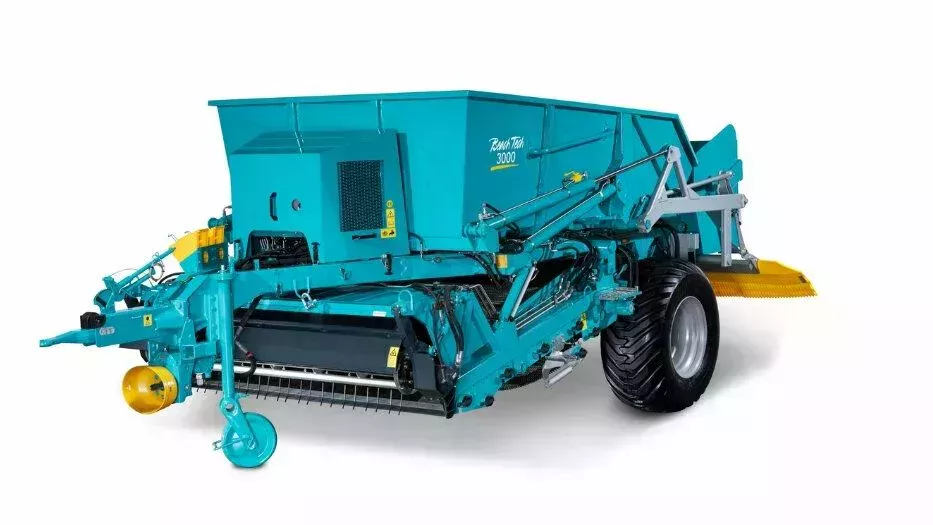

Beach cleaner BeachTech 3000 in the showroom

Additional collection hopper

The BeachTech 3000 is a beach cleaner and haul vehicle in one. The contents of the collection hopper can be emptied directly into the main dump body. Instead of driving to the container or dumping point, only a short stop is required. This results in significantly shorter dumping times and a higher output per hour. The dump body is made of aluminum and is therefore particularly light.

PickUp blade with spring tines

The PickUp blade with spring tines assists in picking up the sand into the beach cleaner. The spring tines can be aligned differently via a hydraulic cylinder. The operator can thus switch continuously between raking, screening and mixing techniques and adapt optimally to the prevailing conditions.

Area coverage

With a working width of 2.50 m and the particularly high loading volume, the BeachTech 3000 achieves area outputs of up to 30,000 m² per hour. (7.4 acres/h).

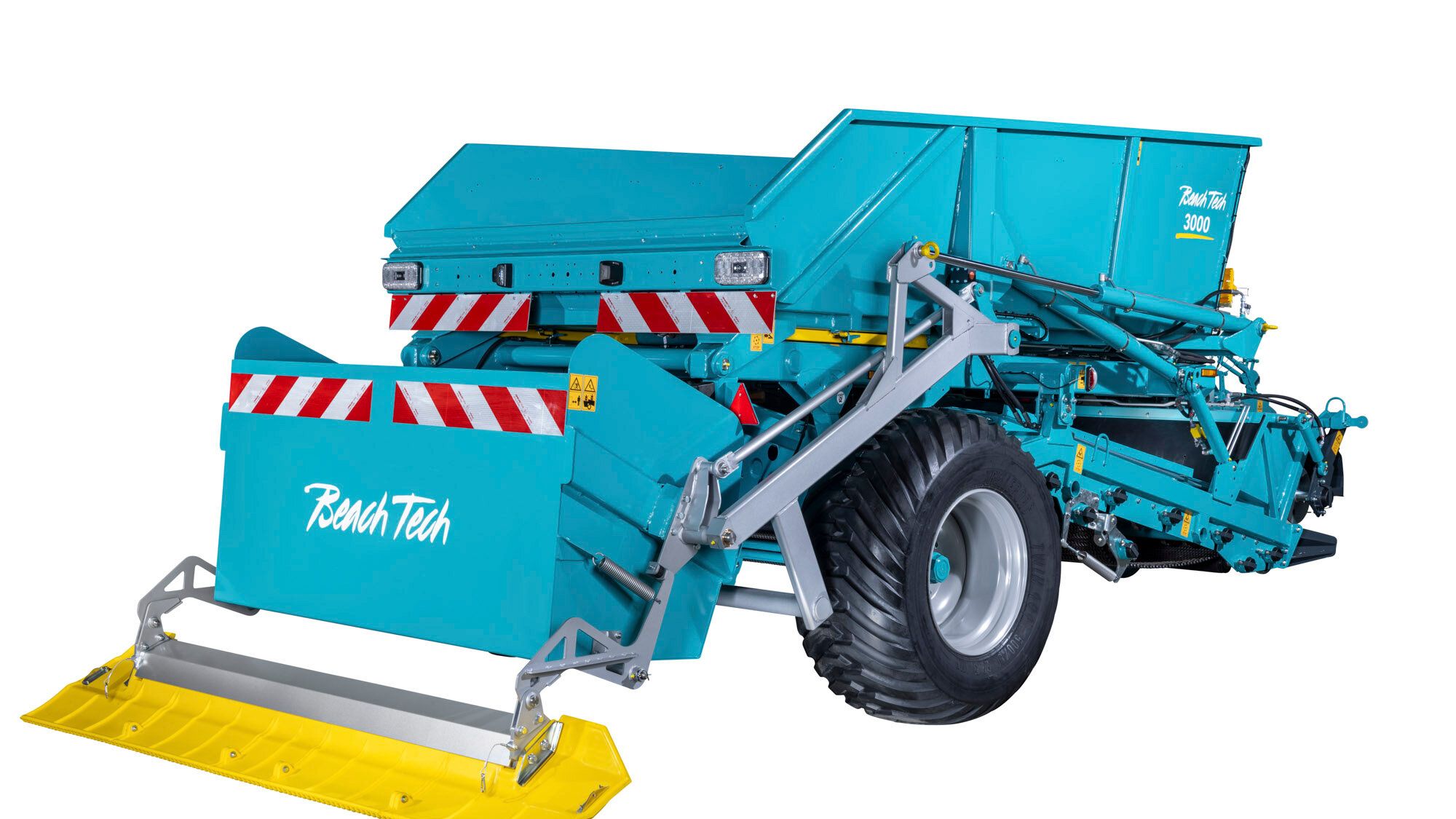

Pulled beach cleaner BeachTech 3000 back view in showroom

2-belt screening system

The BeachTech 3000 has two screen cassettes through which the sand to be cleaned is screened out. The material to be picked up is conveyed to the first screening belt during travel, where the sand is screened out by vibration. The waste material is then conveyed by the second belt into the collection hopper. The result: maximum screening capacity and effective sand cleaning!

Gezogener Strandreiniger BeachTech 3000 Nahaufnahme Finisher

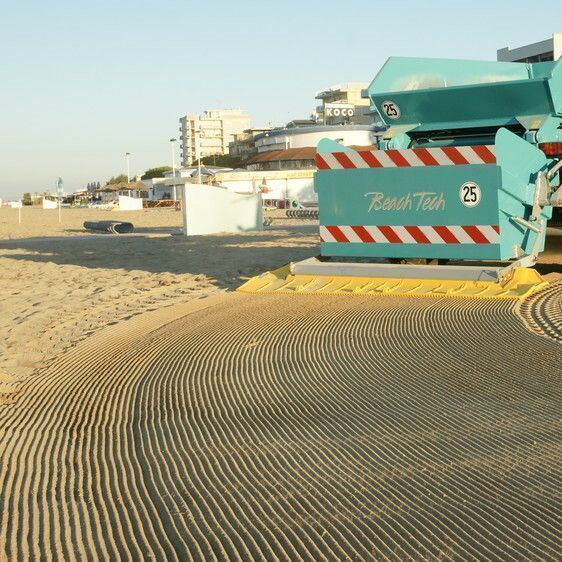

Visible Cleanliness

Finisher

The finisher smoothes the sand surface and compresses it slightly. In doing so, it leaves behind the grooved pattern - the signature of a cleaned and inviting beach.

Gezogener Strandreiniger BeachTech 3000 Nahaufnahme High-Flotation Bereifung
For optimum traction

High Flotation tires

High Flotation tires for high payloads at low air pressure. The special tires provide the beach cleaner with the best possible traction on soft surfaces.

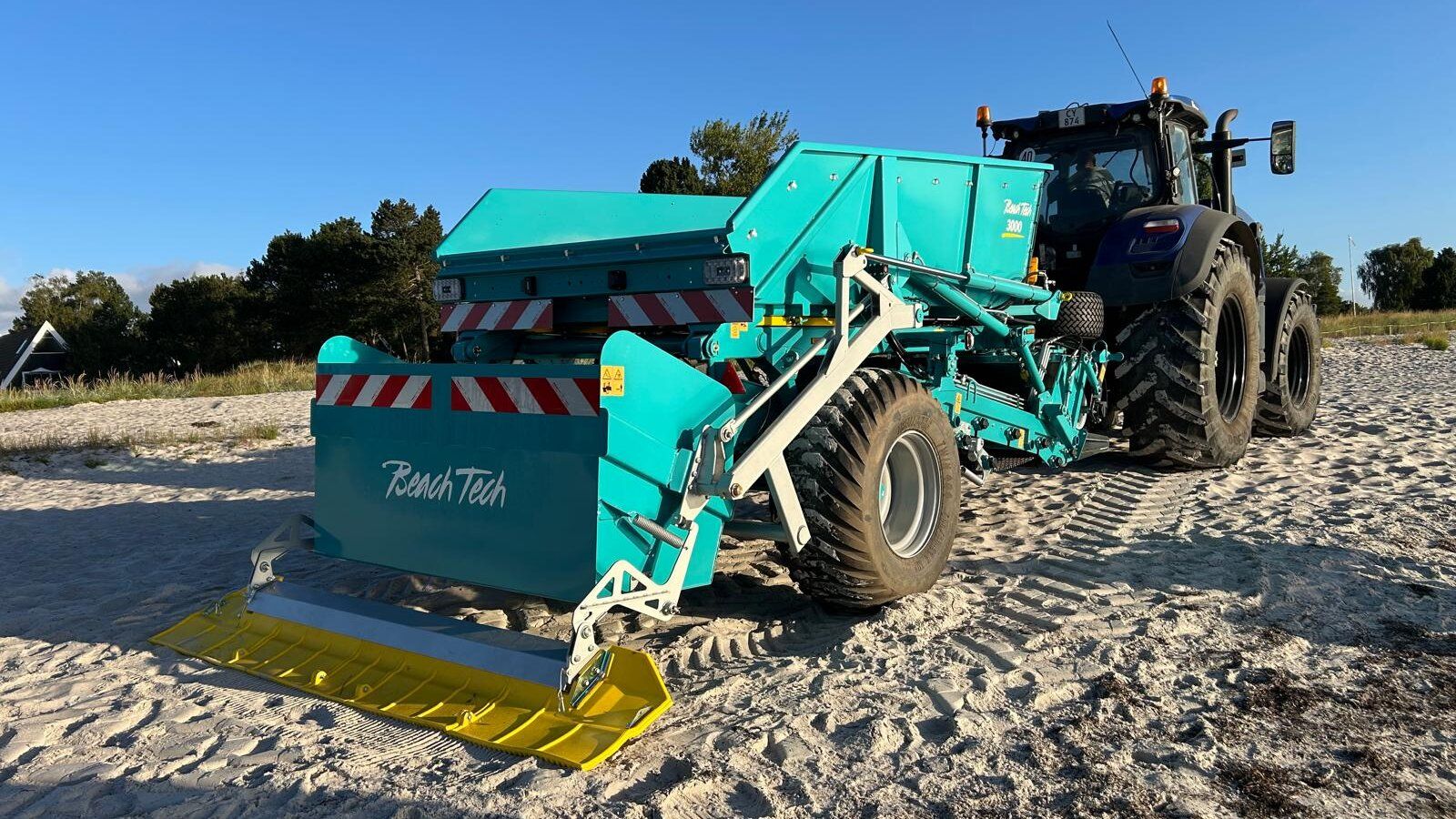

Pulled Beach Cleaner BeachTech 3000 with Tractor on Beach Side View

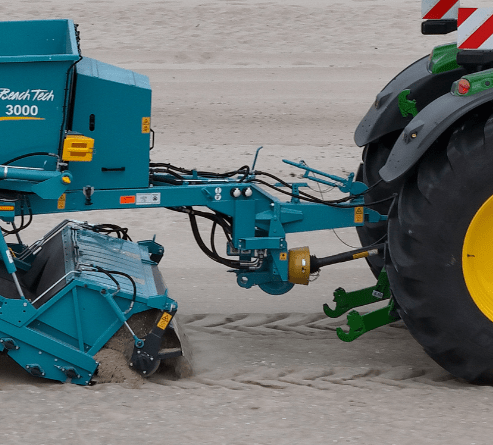

Easy attachment

To operate the BeachTech 3000, a tractor with minimum 100 hp (depending on sand conditions) and a PTO speed of 1,000 rpm is required.

Pulled Beach Cleaner BeachTech 3000 Close Up Control Terminal

Operating control terminal

All vehicle functions can be controlled via the operating terminal in the tractor cab, e.g. lifting and lowering the collection hopper or setting the working depth of the pickup blade. This enables comfortable 1-person operation.

Drawing with measurements of the BeachTech 3000

Technical Data

Dimensions
Vehicle lenght, road transport7,000 mm
Vehicle width, road transport2,700 mm
Vehicle height2,250 mm
Working width2,500 mm
Weight
Empty weight3,200 kg
Technically permissible total weight *6,500 kg

* according to local traffic regulations

Performance data
Area coverage up to **30,000 m²
Working depth up to **30 cm
Power take-off, AR NORM1,000 rpm
Unloading height collecting hopper1,550 mm
Hopper volume0.7 m³
Dump body4.0 m³

** Depending on soil / beach conditions

Dimensions
Overall length23 ft 0 in
Width9 ft 2 in
Height7 ft 5 in
Working width8 ft 5 in
Weight
Net weight7,055 lbs
Gross weight limit13,669 lbs
Performance
Max. area coverage7.4 acres/hr
Working depth up to12 in
Power Take-Off Shaft Speed1,000 rpm
Dump height5 ft
Capacity collecting hopper0.92 cu yd
Capacity dump body5.23 cu yd

Effective beach Cleaning

Why you should rely on BeachTech for professional beach cleaning!

Perfectly cleaned beaches

The BeachTech 3000 works with Rotary Screen Technology. The sand is picked up by the pickup and transported to the rotating screen belt. Here, even the smallest litter particles, such as bottle caps, shards or cigarette butts, are screened out and forwarded to the second screen belt. Larger items, such as stones or plastic waste, are also reliably collected. The different settings of the spring tines allow the operator to switch between screening, raking, and mixing technology and thus react quickly to special conditions, such as wet, heavy sand.

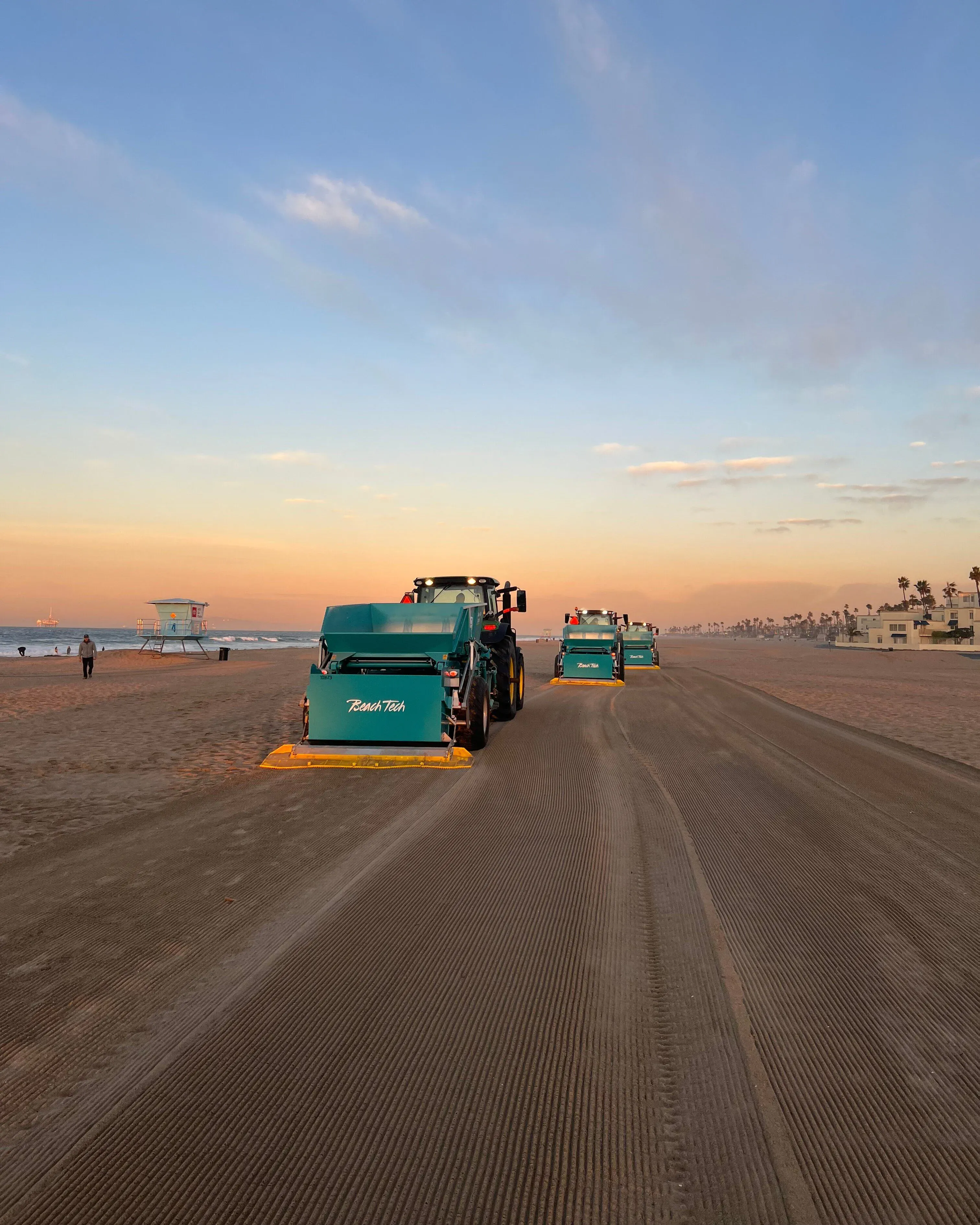

Pulled Beach Cleaner BeachTech 3000 Back View Demonstration Finisher

Unbeatably efficient

The BeachTech 3000 is a beach cleaner and haul vehicle in one. With the main loading body and the large collection container, it has a loading volume of 4.7 m³ (6.15 cu.yd.). The collection hopper can be easily emptied into the dump body - instead of driving to the container or unloading point, all that is required is a short stop. With its unbeaten loaded capacity, the BeachTech 3000 is therefore particularly well suited for use on large, extensive sand areas.

Pulled Beach Cleaner BeachTech 3000 with Tractor Side View on Beach

Equipment

Spring tines:
Low maintenance, individually replaceable

Screen belts:
Various mesh sizes

Eccentric shafts:
Various shapes, diameters and profiles

Maintenance-free bearings:
No more need for re-greasing

Reversing valve:
Direction change of the screen belt possible

  • Camera system
    for better view of the pick-up shaft
  • Feeler wheels
    for constant depth control
  • Wind screens
    on the side of the screening belts
  • Spraying device with 400l (106 gal) water tank
    for dust reduction in dry sand conditions
